UNIGRIPPER | COBOT GRIPPERS
STANDARD VACUUM GRIPPERS FOR COBOT APPLICATIONS
Due to their simplicity and flexibility, cobots can often be a more economical option for small and medium-sized enterprises. For safety reasons, cobot equipment must be adapted to the proximity of operators.

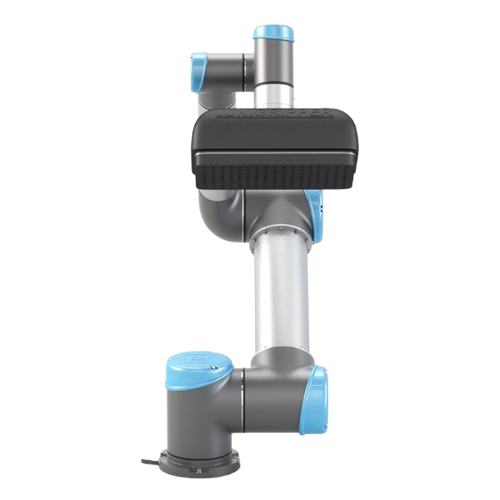

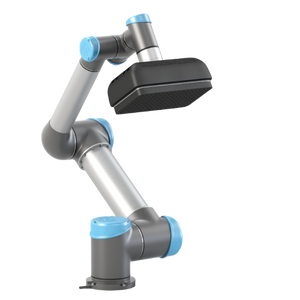

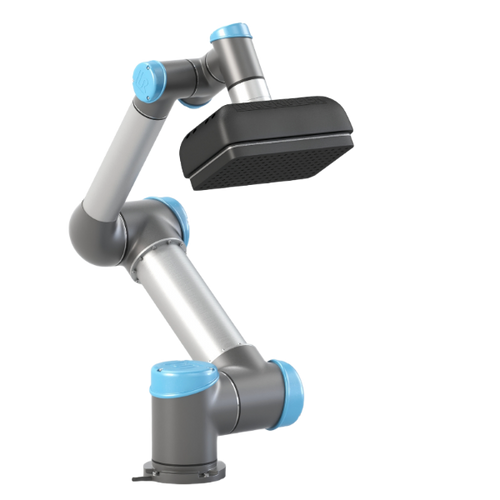

Specifically designed for use with cobots, the CoLight features a smooth, edge-free design to ensure safe and gentle collaboration. It offers impressive vacuum force and ultra-low weight. Combining the advantages of additive manufacturing with the strength of aluminium, the CoLight boasts a lightweight yet robust construction.

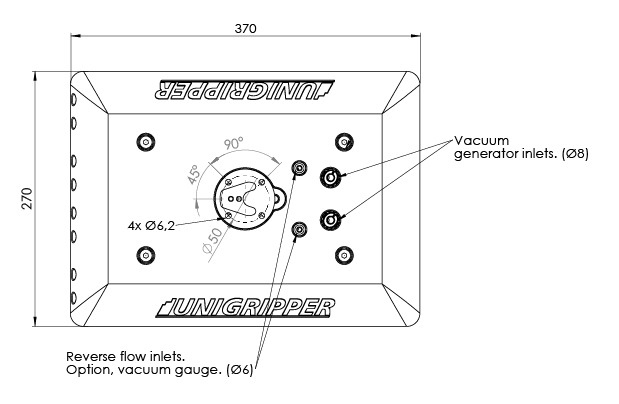

CO/LIGHT MAXI | 270x370mm
The Co/Light Maxi provides an
extensive surface area for vacuum distribution, making it ideal for
handling large quantities of smaller items or securely managing larger
objects such as boxes.
CO/LIGHT REGULAR | 150x265mm
The Co/Light Regular is a high-performance gripper featuring a large gripping area while maintaining a low weight. It is available in two valve pitches: 15/15 for small items and high-porosity objects, and 30/30 for larger items with low porosity, such as standard-quality boxes.
CO/LIGHT MINI | 112x150mm
The Co/Light Mini is the ideal option for robots with a 3kg payload, specifically designed for handling lighter or smaller items.
CO/LIGHT CONTROL BOX
The UniGripper Control Box integrates a pneumatic valve for vacuum regulation and a vacuum switch for grip indication.
This neatly designed unit is straightforward to integrate, requiring no additional pneumatic components for installation
ROBOT PLUG-INS
The plug-ins offer great flexibility, allowing users to customise and adapt the grippers according to their specific needs.

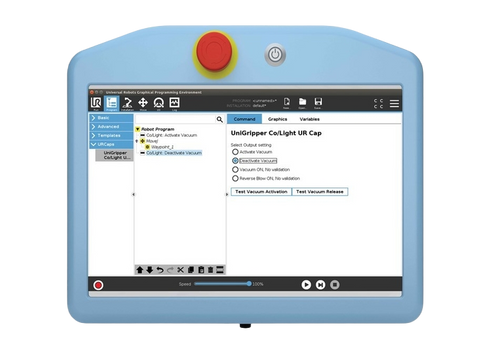

Resources for UNIVERSAL ROBOTS | Certified UR+ system

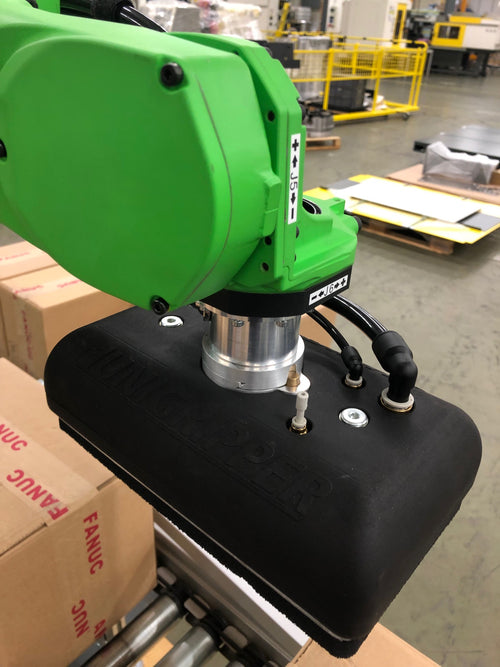

Resources for FANUC CRX Robots | Compatible peripheral device for Fanuc CRX
UNIGRIPPER | SMS-Serie Modules
Standard grippers with UniGripper's Intelligent Vacuum technology.
Available in widths of 80 and 120mm and a number of different lengths and
TEPRO MACHINE & PAC SYSTEM
Unigripper is a product developped by Tepro /- Sweden-based company and have worked
in the packaging and automation industry for more than 40 years
More information about our products ?
