FLEXIBOWL | VISION
FLEXIVISION
FlexiVision is the machine vision software that manages FlexiBowl’s operations, developed using Cognex Vision Pro library tools.
FlexiBowl can be equipped with FlexiVision, a vision system specifically designed for this product, while also remaining compatible with third-party machine vision systems if required.
FlexiVision is our vision system, meticulously refined over the years to ensure precise monitoring of operations. It dynamically manages all FlexiBowl functions, including acceleration, deceleration, speed, angle, and activation of the flip mechanism. Additionally, it oversees the bulk feeder algorithm and robot calibration.
The system facilitates the transfer of coordinates to the robot for accurate pick-and-place execution and precise part localization within FlexiBowl. FlexiVision also streamlines communication with the robot and assists in configuring the recipe database. Moreover, it supports up to two additional inspection cameras for enhanced intermediate-level control.
HOW IT WORKS
FlexiVision is designed to minimize the integration time of a vision system into FlexiBowl.

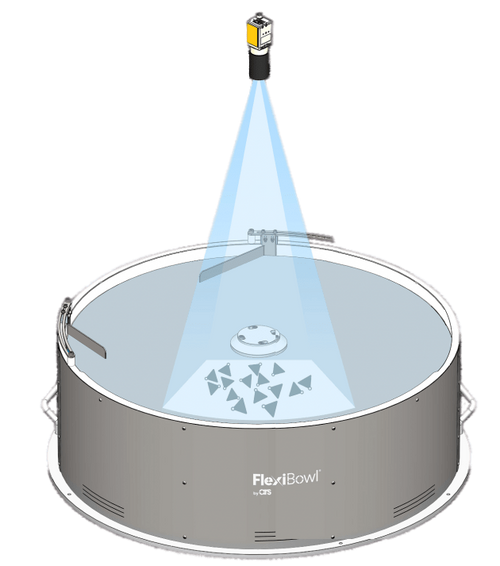

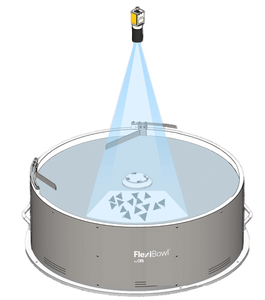

It captures an image once the parts have stabilized on the disc, ensuring precise detection and processing.

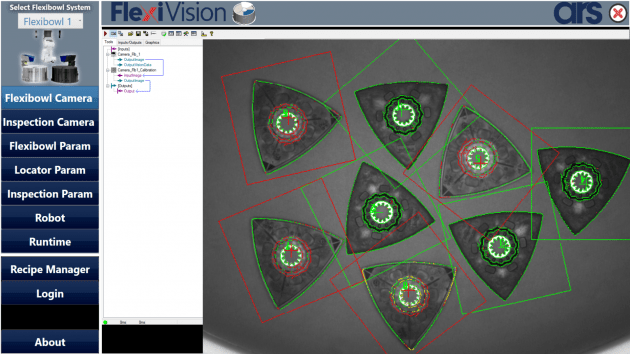

- Its algorithm detects and identifies the coordinates of each object on the FlexiBowl.
- FlexiVision transmits these coordinates to the robot in charge of the pick-and-place operation.
- The vision system captures another image, initiating either a new pick-and-place cycle or movement of the FlexiBowl. If needed, it also triggers the bulk feeder's unloading sequence.
Additionally, the FlexiVision algorithm monitors the quantity of parts in each section of the disc and manages the release of new parts. This ensures a constant supply for pick-and-place operations, maximizing productivity.
